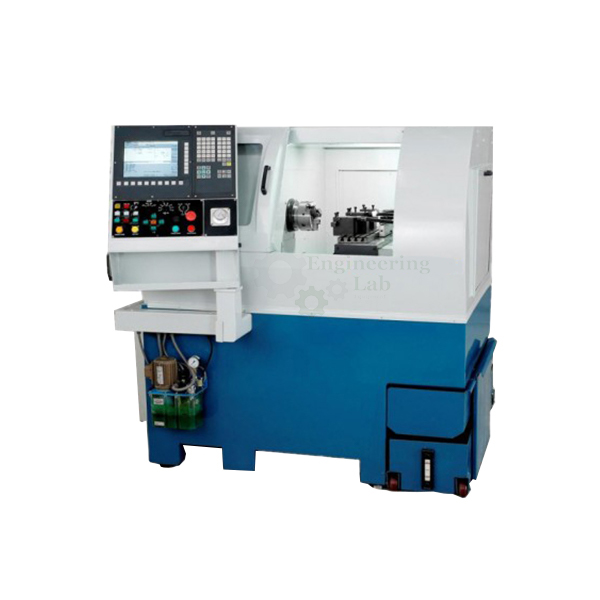

Flex Turn CNC Lathe
Product Code : EL-CACLE-10875
Flex Turn CNC Lathe (code EL-CACLE-10875) is a CNC chucker for turning and milling medium-size parts, fitted with either a linear tooling arrangement or an eight-station turret with an independent live tool. It has a 100 mm chuck capacity, 80 mm maximum turning diameter and 190 mm maximum turning length, 95/210 mm X/Z travel, a 3.7 KW spindle motor giving 150-4000 RPM and 0.01 mm positioning accuracy.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | CNC chucker combining turning and milling |
| Tooling | Linear tooling arrangement, or eight-station turret coupled with an independent live tool |
| Live tools | Separate set with independent servomotor and drive, for slot milling, face drilling/threading and profile contouring |
| Applications | Medium-size parts for automobile, agriculture, surgical equipment, home appliances, aerospace and jewellery |
| Chuck capacity | 100 mm |
| Max. turning diameter | 80 mm |
| Max. turning length | 190 mm |
| Positioning accuracy | 0.01 mm |
| Spindle nose taper | A2-3 / MT3 |
| Hole through spindle | 20 mm |
| Turret stations | 8 |
| X/Z axis travel | 95/210 mm |
| Rapid X/Z | 5000 mm/min |
| Feed rate | 0-5000 mm/min |
| Tailstock base stroke | 170 mm |
| Spindle speed range | 150-4000 RPM |
| Spindle motor | 3.7 KW |
| Quill stroke | 40 mm |
| Quill diameter | 35 mm |
| Tailstock taper | MT2 |
| Machine dimensions | 1200 × 800 × 1400 mm (L × W × H, approx.) |
| Machine weight | Approx. 380 kg |
| Product code | EL-CACLE-10875 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Flex Turn CNC Lathe Used For?
A chucker is a CNC lathe built mainly for work held in a chuck, and adding driven live tools lets milling and drilling be done in the same set-up as turning, so a part can often be finished without moving it to a second machine. The operator mounts the part in the 100 mm chuck, indexes the eight-station turret or uses the linear tooling, and runs the program; the live tools, with their own servomotor and drive, cut slots, drill and thread faces and contour profiles. In training it shows how combined turning and milling reduces the manufacturing cost per component.
What to Specify When Ordering
- Quantity — the number of machines required.
- Tooling — linear tooling arrangement or eight-station turret with independent live tool.
Frequently Asked Questions
What tooling options does the Flex Turn CNC Lathe offer?
It can be fitted with a linear tooling arrangement or with an eight-station turret coupled with an independent live tool, which allows milling operations alongside turning.
What are its turning capacities?
Chuck capacity is 100 mm, the maximum turning diameter is 80 mm and the maximum turning length is 190 mm, with a 20 mm hole through the spindle.
What spindle and feed data are given?
A 3.7 KW spindle motor gives a speed range of 150 to 4000 RPM, the rapid X/Z rate is 5000 mm/min and the feed rate is 0 to 5000 mm/min.
What can the live tools do?
The separate set of live tools, with its own servomotor and drive, is used for slot milling, face drilling and threading, and profile contouring.
Which industries is it suited to?
It is suited to manufacturing medium-size parts in the automobile, agriculture, surgical equipment, home appliance, aerospace and jewellery fields.
What tailstock is fitted?
The tailstock has a base stroke of 170 mm, a quill stroke of 40 mm, a quill diameter of 35 mm and an MT2 taper.
OEM Manufacturer
The Flex Turn CNC Lathe is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests CAD and CAM laboratory machines and trainers for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
