CNC Laser Cutting Machine
Product Code : EL-CACLE-10878

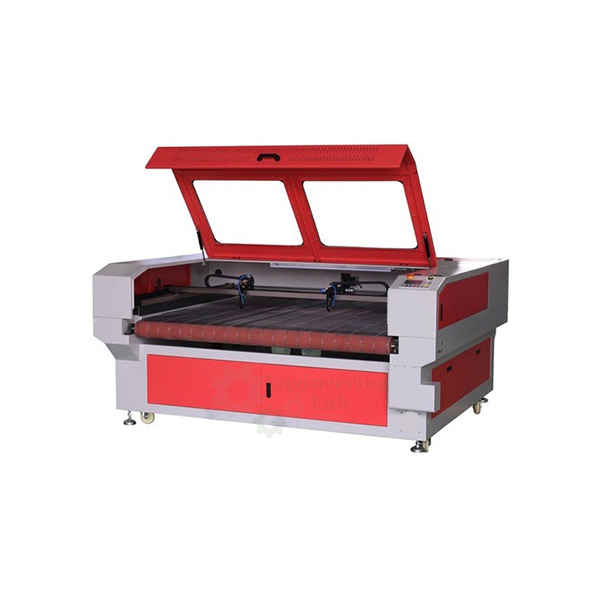

CNC Laser Cutting Machine (code EL-CACLE-10878) is a CNC laser cutter used for cutting and engraving materials such as cloth, leather, wool, Plexiglas, wood, plastic, rubber, crystal, ceramic tile, jade and bamboo. It has a laser power of 100 to 150 watts, cuts 28 mm acrylic, 10 mm MDF or 15 mm plywood, and is fitted with a motorised up-and-down table, an autofocus system, a rotary attachment and a red dot pointer.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Cutting and engraving |
| Materials | Cloth, leather, wool, Plexiglas, wood, plastic, rubber, crystal, ceramic tile, jade, bamboo |
| Laser power | 100-150 watts |
| Cutting ability | 28 mm acrylic, 10 mm MDF, 15 mm plywood |
| Table | Motorised up and down table |
| Focusing | Autofocus system |
| Accessories | Rotary attachment; red dot pointer |
| Machine dimensions | 1200 × 800 × 1600 mm (L × W × H, approx.) |
| Machine weight | Approx. 280 kg |
| Product code | EL-CACLE-10878 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the CNC Laser Cutting Machine Used For?
Laser cutting focuses a high-power beam to a small spot that melts, burns or vaporises the material along a programmed path, giving narrow cuts without a tool touching the work, and at lower power the same beam marks the surface for engraving. The operator loads the sheet, raises or lowers the motorised table and lets the autofocus system set the focus, uses the red dot pointer to locate the start position, and runs the job. The rotary attachment holds round items for engraving around their surface, and the cutting depth depends on the material, for example 28 mm in acrylic or 15 mm in plywood.
What to Specify When Ordering
- Quantity — the number of machines required.
- Laser power — the laser power required within the 100-150 watt range.
Frequently Asked Questions
Which materials can the CNC Laser Cutting Machine process?
It works on cloth, leather, wool, Plexiglas, wood, plastic, rubber, crystal, ceramic tile, jade and bamboo, for both cutting and engraving.
How thick a material can it cut?
It can cut 28 mm acrylic, 10 mm MDF or 15 mm plywood, working with a laser power in the 100 to 150 watt range.
What features help with setting up a job?
A motorised up-and-down table and an autofocus system set the working height and focus, and a red dot pointer shows where the laser will act on the material.
What is the rotary attachment for?
The rotary attachment turns cylindrical items during processing so that their curved surface can be engraved or cut, in addition to flat sheet work.
What are the machine's size and weight?
Complete with its motorised table, the machine is about 1200 × 800 × 1600 mm in length, width and height, and its weight is approximately 280 kg.
OEM Manufacturer
The CNC Laser Cutting Machine is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests CAD and CAM laboratory machines and trainers for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
Related CAD and CAM Equipment
- CNC Plasma Cutting Machine — automatic CNC plasma cutter for work up to 15 mm thick with automatic height tracking system.
- Flexible Manufacturing System — training FMS cell with CNC lathe and mill, gantry, robotic arm, pallet conveyor and storage and retrieval system.
- Precision EDM Machine — spark erosion machine for 0.3 to 3.0 mm electrodes, with current booster and 415 V supply.
See the full CAD and CAM Laboratory Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other CAD and CAM lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of machines and the laser power required between 100 and 150 watts and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
Last updated: October 2026
