Load Measurement Trainer
Product Code : EL-MAILE-10808

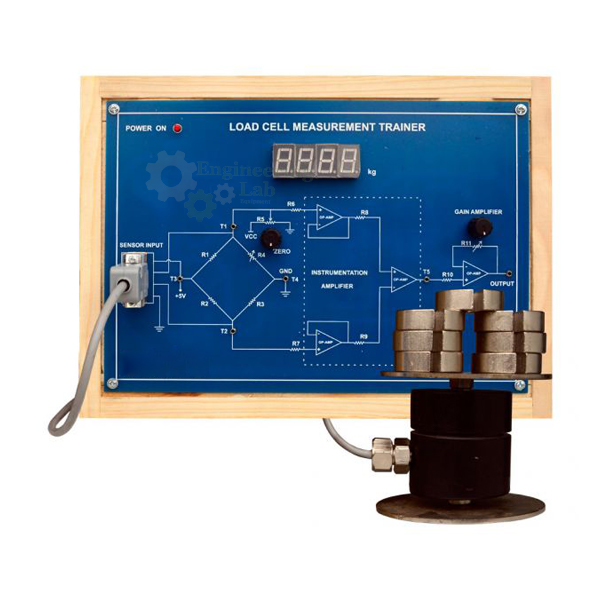

Load Measurement Trainer (code EL-MAILE-10808) is a strain gauge load cell set used to show how a load applied in compression is measured and read out directly in kilograms. The 1 kg compression load cell has 350 ohm ±2% strain gauges bonded on a steel member, and its indicator combines a 10 V DC excitation supply, signal conditioner, amplifier and 3½ digit converter with a 3.5 digit LED display reading ±19.99.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Measuring load in kg with a strain gauge based load cell loaded in compression |
| Supplied with | Load cell, loading arrangement, weights and digital load indicator |
| Load cell | |
| Sensor | Strain gauges bonded on a steel member |
| Type | Compression |
| Strain gauge resistance | 350 ohms ±2% |
| Loading | 1 kg |
| Connection | Four-core shielded cable attached to the load cell |
| Excitation | 10 V DC |
| Accuracy | 1% |
| Linearity | 1% |
| Overload | 125% |
| Indicator | |
| Electronics | Inbuilt power supply for the instrument and the strain gauge excitation; strain gauge signal conditioner and amplifier; 3½ digit analogue to digital converter |
| Display | 3.5 digit seven segment LED, 200 mV full-scale deflection, reading ±19.99 |
| Excitation | 10 V DC |
| Accuracy | 1% |
| Bridge balancing | Front panel strain gauge bridge balancing by potentiometer |
| Tare | Front panel zero adjustment by potentiometer |
| Calibration | 1.00 kg load |
| Enclosure | Tapered fibreglass box with all necessary test points and schematic circuitry brought out |
| Accessories | Self-contained system, all accessories included |
| Power and size | |
| Power supply | 230 V, 50 Hz, 1 phase or 230 V, 60 Hz, 1 phase |
| Dimensions | 400 × 300 × 300 mm (L × W × H) |
| Weight | Approx. 15 kg |
| Supply | |
| Product code | EL-MAILE-10808 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Load Measurement Trainer Used For?
When a steel member is loaded it deforms very slightly, and strain gauges bonded to it change resistance in proportion to that strain; wired as a bridge, they give a small voltage that rises with the applied load. In the laboratory, students balance the bridge from the front panel, zero the display, then place the weights on the loading arrangement one at a time and note the indicator reading in kg. Plotting the readings against the known weights shows the load cell's linearity, and the test points brought out on the schematic allow them to follow the signal through the conditioner, amplifier and converter.
What to Specify When Ordering
- Quantity — the number of trainers required.
- Power supply — the version for 230 V, 50 Hz or for 230 V, 60 Hz, single phase.
Frequently Asked Questions
What capacity is the load cell?
The load cell is a compression type for 1 kg loading, with an overload capacity of 125%, and the indicator is calibrated with a 1.00 kg load.
How does the load cell sense the load?
Strain gauges of 350 ohms ±2% resistance are bonded on a steel member. The load strains the member, changing the gauge resistance, and the conditioned signal is shown as a load in kg.
What accuracy and linearity are given?
The load cell has an accuracy of 1% and a linearity of 1%, and the digital indicator is also specified with an accuracy of 1%.
What does the indicator display?
A 3.5 digit seven segment LED display with a 200 mV full-scale deflection reads up to ±19.99, showing the applied load in kg.
Can the bridge be balanced before loading?
Yes. Strain gauge bridge balancing and zero adjustment are both made from the front panel through potentiometers, so the display can be set to zero with no load applied.
How can the Load Measurement Trainer be ordered?
The enquiry button marked Add To Cart on this page starts an order; alternatively, the quantity and delivery location can be sent through the contact page.
OEM Manufacturer
Buyers of the Load Measurement Trainer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
