Sound Meter

Product Code : EL-MAILE-10818

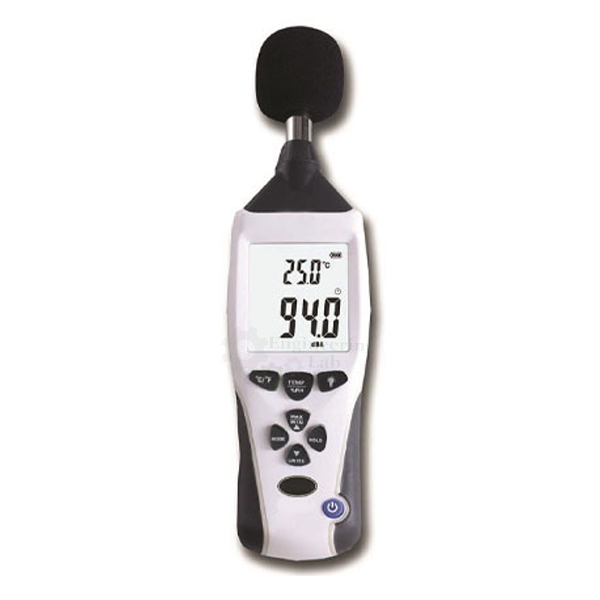

Sound Meter (code EL-MAILE-10818) is a hand-held digital sound level meter used for acoustic measurements, reading sound levels from 30 to 130 dBA through a 1/2 inch electret condenser microphone. It has a large 4 digit LCD with 0.1 dB resolution and auto backlight, a sample rate of 2 times per second, 1.5 dB accuracy and a maximum hold function, and it runs on a 9 V battery, which is included along with a sponge ball and carrying case.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Is the Sound Meter Used For?

A sound level meter turns the small air pressure changes of sound into a reading in decibels, a logarithmic scale that suits the very wide range of pressures the ear can hear, and the A-weighting used for dBA readings reduces low and very high frequencies to follow the response of the human ear. The user holds the meter with the microphone, covered by its sponge ball, pointed at the source, reads the level and uses maximum hold to catch the loudest moment, whether in a factory, near traffic, at home or on an audio system. The standards listed for it are IEC 651 Type 2 and ANSI 1.4 Type 2.

What to Specify When Ordering

• Quantity — the number of sound level meters required.

Frequently Asked Questions

What range of sound levels can the meter read?
It measures from 30 to 130 dBA with a resolution of 0.1 dB and an accuracy of 1.5 dB, sampling twice every second.

What does dBA mean?
dBA is a sound level in decibels with A-weighting applied, which reduces the low and very high frequencies so that the reading follows the sensitivity of the human ear.

Which standards are listed for this meter?
The standards listed are IEC 651 Type 2 and ANSI 1.4 Type 2, the sound level meter types given in its specification.

What is the sponge ball for?
The sponge ball fits over the 1/2 inch electret condenser microphone to reduce the noise produced by wind or air movement across it.

How is the meter powered?
It runs on a 9 V battery, which is included, and it has an auto power off feature for energy saving and an auto backlight display.

What operating conditions suit the meter?
It is meant for use at 0 to 40 degrees and 10 to 80% RH, and for storage at -10 to +60 degrees and 10 to 70% RH.

OEM Manufacturer

The Sound Meter is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.

Related Measuring Instruments

• Anemometer — digital vane meter with 72 mm vane on cable, CFM or CMM air volume and temperature display.
• Lux Meter — auto-ranging 0 to 50 000 lux meter with silicon photo diode detector and bar graph LCD.
• Hygrometer Digital — electronic humidity and temperature meter with comfort level display and max/min memory.

See the full Measurement and Instrumentation Lab Equipment range or all Mechanical Engineering Lab Equipment.

Request a Quote

For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. To ask for a quotation, send the number of sound level meters required and your delivery location through the contact page, or use the Add To Cart enquiry button on this page.
