Universal Bevel Protractor
Product Code : EL-MAILE-10836

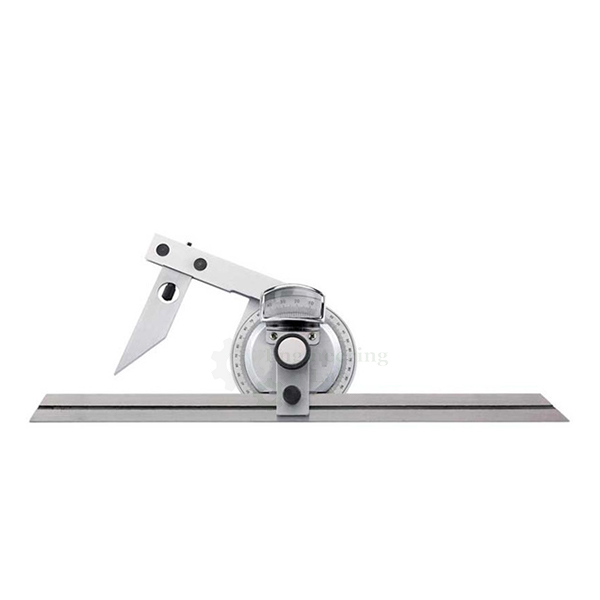

Universal Bevel Protractor (code EL-MAILE-10836) is an angle gauge used to set out and test angles to very close tolerances on machines, moulds and jigs. It consists of a beam, a graduated dial and a blade joined to a vernier swivel plate by a thumb nut and clamp, reads to 5 minutes with a vernier accuracy of ±5 minutes, can be used through the full 360°, has a 2.56 in (70 mm) dial and can be attached to height gauges.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Establishing and testing angles to close tolerances on machines, moulds and jigs |
| Construction | Beam, graduated dial and blade; blade connected to a swivel plate with vernier scale by a thumb nut and clamp |
| Reading | Reads to 5 minutes |
| Measuring range | Usable completely through 360° |
| Graduation | 5 min. (0°–90°–0°) |
| Vernier accuracy | ±5 minutes |
| Dial diameter | 2.56 in / 70 mm |
| Straightness | [.00016 in + (.00005 × L/2)] in, where L is the length in inches |
| Parallelism | [.00016 in + (.00005 × L/2)] in, where L is the length in inches |
| Height gauge mounting | Can be attached to height gauges |
| Product code | EL-MAILE-10836 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Universal Bevel Protractor Used For?
Bevel protractors are used in toolrooms and inspection to measure the angle between two faces of a part, to set a part or a machine at a given angle, and to mark out angled lines. The user lays the beam against one face, swings the blade onto the other, locks it with the thumb nut and reads the whole degrees on the dial and the minutes on the vernier. With the beam and blade edges parallel, the swivel-plate line sits on the zero of the dial; angles of 90 degrees or less are read directly from the line's position against the dial graduations.
What to Specify When Ordering
- Quantity — the number of bevel protractors required.
Frequently Asked Questions
How finely does it read?
It reads to 5 minutes, with 5 minute graduations running 0°–90°–0°, and the vernier accuracy is ±5 minutes.
What parts make up the protractor?
It is made up of a beam, a graduated dial and a blade, which is connected to a swivel plate carrying the vernier scale by a thumb nut and clamp.
How is an angle read?
When the beam and blade edges are parallel, a line on the swivel plate meets the dial's zero. For angles of 90 degrees or under, the reading is taken directly from that line against the dial numbers.
Can it be mounted on a height gauge?
Yes. It can be attached to height gauges as well as being used by hand for angle measurement on machines, moulds and jigs.
What straightness and parallelism are specified?
Both are given as [.00016 in + (.00005 × L/2)] in, where L is the length in inches, so the allowance grows with the length.
What is the dial diameter?
The dial diameter is 2.56 in / 70 mm, and the protractor can be used completely through 360° for angle work.
OEM Manufacturer
The Universal Bevel Protractor is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
