Thread Pitch Gauge
Product Code : EL-MAILE-10849

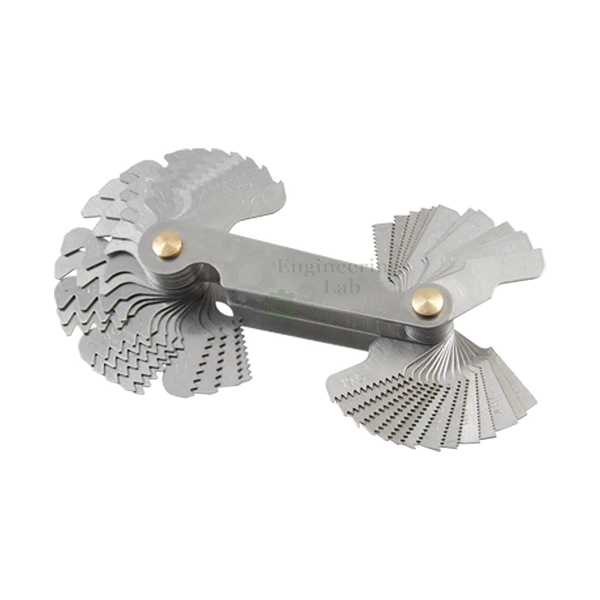

Thread Pitch Gauge (code EL-MAILE-10849) is a screw pitch gauge used as a reference tool to find the pitch of a thread on a screw or in a tapped hole and categorise it by shape and pitch, without measuring and calculating the pitch. Its 52 stainless steel leaves cover 60-degree metric pitches from 0.25 to 6 mm and 55-degree Whitworth pitches from 4 to 62 tpi, held by two knurled knobs, and it weighs 79 g.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Screw pitch gauge for metric and Whitworth threads |
| Leaves | 52 |
| Metric range | 60-degree metric threads, 0.25 to 6 mm pitch |
| Whitworth range | 55-degree Whitworth threads, 4 to 62 threads per inch (tpi) |
| Material | Stainless steel construction |
| Leaf holding | Two knurled knobs hold the leaves in place |
| Weight | 79 g |
| Use | Reference tool to identify thread profile and pitch; not used as a precision measuring instrument |
| Product code | EL-MAILE-10849 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Thread Pitch Gauge Used For?
Before a damaged bolt is replaced or a tap is chosen for a hole, the thread has to be identified. The user fans out the leaves and tries them against the thread one at a time until a leaf sits in the thread with no light showing between its teeth and the thread flanks; the marking on that leaf gives the pitch in millimetres for metric threads or in threads per inch for Whitworth. The different 60-degree and 55-degree leaf forms also help tell metric and Whitworth threads apart, so a fastener can be matched quickly in the workshop or store.
What to Specify When Ordering
- Quantity — the number of thread pitch gauges required.
Frequently Asked Questions
Which thread types can the gauge identify?
Its leaves cover 60-degree metric threads from 0.25 to 6 mm pitch and 55-degree Whitworth threads from 4 to 62 threads per inch.
How many leaves does it have?
There are 52 leaves, shared between the metric and Whitworth pitches, held in place by two knurled knobs.
Is a thread pitch gauge a measuring instrument?
It is a reference tool rather than a precision measuring instrument. It lets the user find a thread's profile and pitch quickly and categorise it by shape and pitch.
What is the gauge made of and how much does it weigh?
The gauge is of stainless steel construction, with its 52 leaves held by knurled knobs, and it weighs 79 g.
How is the correct leaf found?
Leaves are tried against the thread until one sits fully in it with no gap along the flanks; that leaf shows the pitch, saving the need to measure and calculate it.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Thread Pitch Gauge at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its measuring instruments and instrumentation trainers for engineering laboratories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Measuring Instruments
- Go / No Go Gauges — 7 piece H6 metric thread plug gauge set, M3 to M12, double-end GO and NO GO, wooden case.
- Taper Gauge — pocket-size stainless steel gauge for hole sizes and bores, reading in thousandths of an inch.
- Internal Spring Caliper — inside caliper in Style A-4 for 0-4 in bores, with outward-turned legs and satin chrome finish.
See the full Measurement and Instrumentation Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of thread pitch gauges required and the delivery location through the contact page; the Add To Cart button on this page also adds the Thread Pitch Gauge to an enquiry.
