Vernier Height Gauge
Product Code : EL-MAILE-10845

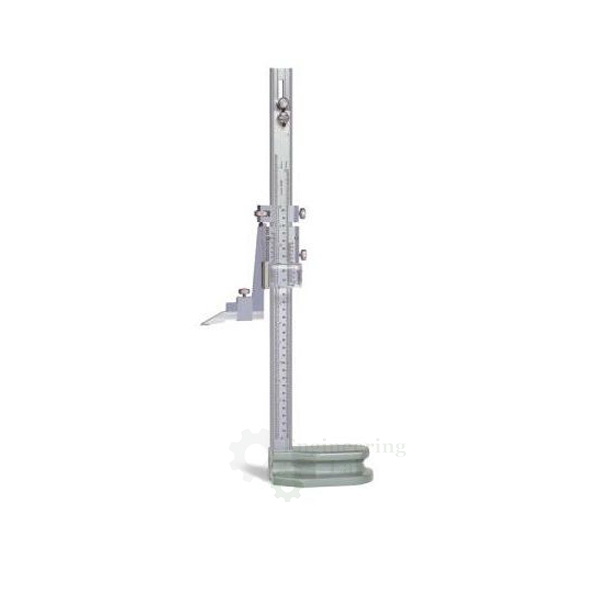

Vernier Height Gauge (code EL-MAILE-10845) is a measuring instrument that travels on a vertical column, or beam, to measure and mark vertical distances from the base of an object, reading on a vernier scale. It has a 0-200 mm range, 0.02 mm resolution and 0.03 mm accuracy, a hand-operated slider with fine-adjustment carriage and a carbide-tipped scriber, and is a lightweight 1.4 kg unit suited to small objects.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Measuring range | 0-200 mm |
| Resolution | 0.02 mm |
| Accuracy | 0.03 mm |
| Scale | Vernier scale for reading in fine units |
| Column | Vertical column (beam) on which the slider travels |
| Slider | Hand-operated, with fine-adjustment carriage for feed |
| Scriber | Carbide-tipped, for hardness |
| Size | Lightweight unit suited to measuring small objects |
| Mass | 1.4 kg |
| Product code | EL-MAILE-10845 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Vernier Height Gauge Used For?
Height gauges are used on a surface plate in machining, manufacturing and mechanical engineering work, both to measure the heights of features above a reference base and to mark out work before machining. The gauge stands on the plate beside the part; the operator raises or lowers the slider by hand, brings it close with the fine-adjustment carriage and reads the height from the vernier scale. For layout, the carbide-tipped scriber is set to the required height and drawn across the work so that it scratches a line on the surface at that level.
What to Specify When Ordering
- Quantity — the number of vernier height gauges required.
Frequently Asked Questions
What range and resolution does the Vernier Height Gauge have?
It measures from 0 to 200 mm with a resolution of 0.02 mm, and its accuracy is given as 0.03 mm.
How is the gauge read?
Heights are read from a vernier scale, which allows readings in fine units as the slider moves up and down the vertical beam.
Can it be used to mark out work?
Yes. The carbide-tipped scriber is set to the required height and drawn across the workpiece so that it scratches a layout line on its surface.
How is the slider adjusted?
The slider is moved by hand and has a fine-adjustment carriage, which gives a fine feed when bringing the scriber to the required setting.
How heavy is the gauge?
It has a mass of 1.4 kg, making it a lightweight unit that suits the measurement of small objects.
OEM Manufacturer
The Vernier Height Gauge is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
