Digital Height Gauge
Product Code : EL-MAILE-10846

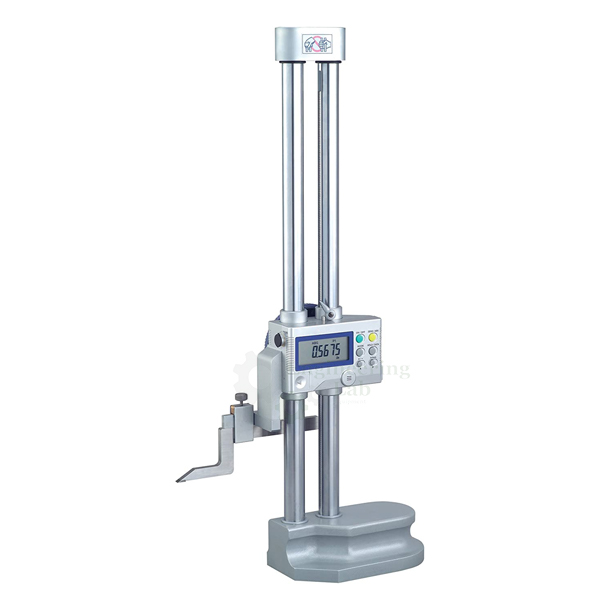

Digital Height Gauge (code EL-MAILE-10846) is an LCD electronic height gauge that moves along a vertical beam to measure, and mark out, heights above the base of a workpiece. It reads 0-12 in / 0-300 mm with 0.0005 in / 0.01 mm resolution and ±0.00157 in / 0.04 mm accuracy, has a fine-adjustment slider, carbide-tipped scriber and SPC output, and comes with a CR2032 battery, protective case and inspection report.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Standard LCD electronic height gauge |
| Measuring range | 0-12 in / 0-300 mm |
| Resolution | 0.0005 in / 0.01 mm |
| Accuracy | ±0.00157 in / 0.04 mm |
| Display | LCD digital readout |
| Slider | Hand-operated, with fine-adjustment carriage for feed |
| Scriber | Carbide-tipped |
| Data output | Statistical process control (SPC) output transmits results to a computer |
| Battery | CR2032 |
| Supplied with | Protective case and inspection report |
| Product code | EL-MAILE-10846 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Digital Height Gauge Used For?
On a surface plate, a height gauge measures how far features such as steps, bores and faces lie above the reference base, and its scriber marks lines at set heights when work is laid out for machining. With this model the operator brings the slider down to the feature by hand, finishes the movement with the fine-adjustment carriage and reads the height directly from the LCD. Readings can be passed to a computer through the SPC output for recording, which saves writing results down during batch inspection in manufacturing, machining and mechanical engineering work.
What to Specify When Ordering
- Quantity — the number of digital height gauges required.
Frequently Asked Questions
What is the measuring range of the Digital Height Gauge?
It covers 0 to 12 in, or 0 to 300 mm, with a resolution of 0.0005 in / 0.01 mm.
What accuracy is given?
The accuracy given for the gauge is ±0.00157 in, or 0.04 mm, with readings shown on an LCD digital readout.
Can results be sent to a computer?
Yes. A statistical process control (SPC) output transmits measurement results from the gauge to a computer for recording.
What battery does it use?
The gauge is powered by a CR2032 battery, which drives the LCD digital readout and the SPC output.
What comes with the gauge?
It is supplied with a protective case and an inspection report, together with its CR2032 battery.
How is it used for marking out?
The carbide-tipped scriber is set to the height required and drawn across the work, scratching a line on the surface at that height.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Digital Height Gauge at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its measuring instruments and instrumentation trainers for engineering laboratories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
Related Measuring Instruments
- Vernier Height Gauge — vernier-scale instrument for measuring and marking heights from 0 to 200 mm, with carbide-tipped scriber.
- Depth Gauge Digital — 0 to 1 inch electronic depth gauge with spring loaded plunger, zero button and inch or mm LCD.
- Digital Thickness Gauge — 0 to 10 mm spindle thickness gauge with 0.01 mm LCD, ceramic contacts and reversible anvil.
See the full Measurement and Instrumentation Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. For a price, send the number of digital height gauges required and the delivery location through the contact page; the Add To Cart button on this page also adds the Digital Height Gauge to an enquiry.
