Pile Echo Tester Concrete
Product Code : EL-CTLE-10328

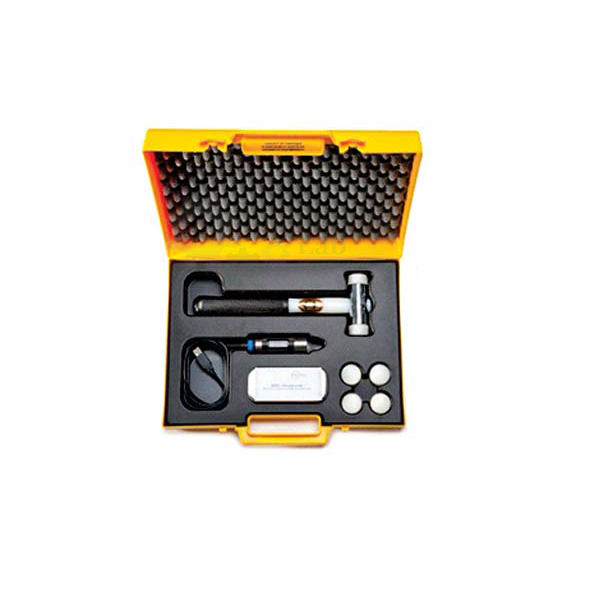

Pile Echo Tester Concrete (code EL-CTLE-10328) is a low strain integrity tester used to confirm that a pile or shaft is free of major cracks and voids before the superstructure is built. It works on most concrete or wood foundations by the Pulse (Sonic) Echo or Transient Response methods, and can also check piles already built into existing bridges or towers and assess their length.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Also known as | Pile Integrity Tester (PIT) |
| Use | Checking that a pile or shaft is free of major cracks and voids before construction of the superstructure |
| Foundations | Most concrete or wood foundations |
| Test type | Wave equation-based non-destructive Low Strain Impact Integrity Test (Low Strain Dynamic Test) |
| Test methods | Pulse (Sonic) Echo or Transient Response |
| Testing speed | Any form of the test is performed quickly, potentially allowing every pile on a job site to be tested |
| Existing structures | Tests piles integral in the structure, such as those supporting existing bridges or towers, and may assess their length |
| Product code | EL-CTLE-10328 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Pile Echo Tester Concrete Used For?
Defects such as necking, voids or major cracks can form while a cast-in-place pile is concreted, and they are hidden below ground once the pile is complete. For the test the pile head is struck lightly and the stress wave that travels down the pile and returns is recorded at the head; reflections from the toe or from a change in section are interpreted by wave equation analysis. A clean record indicates a sound pile, and the arrival time of the toe reflection gives an estimate of length, which is useful for piles under existing bridges or towers.
What to Specify When Ordering
- Quantity — the number of pile integrity testers required.
Frequently Asked Questions
What does a pile echo test show?
It shows whether a pile or shaft is free of major cracks and voids, so that defects can be dealt with before the superstructure is constructed above the foundation.
Which foundation types can be tested?
The tester may be used on most concrete or wood foundations, including piles that are already part of a structure, such as those supporting existing bridges or towers.
Which test methods are available?
It performs Low Strain Impact Integrity Tests, also called Low Strain Dynamic Tests, by either the Pulse (or Sonic) Echo method or the Transient Response method, both based on wave equation analysis.
Can it find the length of an existing pile?
Yes. When used on piles integral in a structure, such as those under existing bridges or towers, the tester may also be used to assess pile length.
Is the test quick enough for a whole site?
Each form of the test is performed quickly, which can make it possible to test every pile on a job site rather than only a selected few.
Why is the test described as low strain?
Only a light impact is applied to the pile head, so the stress produced is very small; the pile is not loaded as in a static load test and is left undamaged.
OEM Manufacturer
Buyers of the Pile Echo Tester Concrete deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests concrete testing equipment, from workability apparatus and specimen moulds to compression and flexure machines, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
