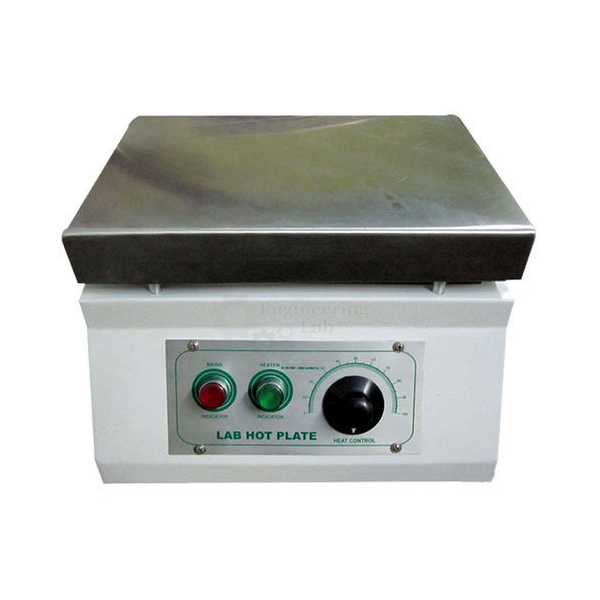

Laboratory Hot Plate

Laboratory Hot Plate

Product Code : EL-LEAA-11000

Quick Answer: This Laboratory Hot Plate has a powder-coated mild steel body with a 7.5-inch diameter cast iron top finished in heat-resistant paint, heating from ambient temperature up to 300°C. Temperature is set via a 0-100 marked Energy Regulator (minimum position gives minimum energy, maximum position gives maximum controlled temperature), and it runs on single-phase 220/230V AC power; an ER thermostat control and a stainless steel (304-grade) body are available as options.

Mild Steel body having Unique design of powder coated with gap of cast Iron top from the body.
Ambient to 300°C Temp.
Energy Regulator having marked 0-100, at minimum energy and at max. position it release max. Temperature Controlled.
Top Cast Iron Diameter having heat resistant Paint is having 7.5”.
Optional : ER Thermostat control in place of applied.

Technical Parameters :
Control Panel: Mains Panel and Load Indicator, Energy Regulator
Duty Cycle: Continuous
Housing Material: CRC Powder Coated with Mild Steel
Power Consumption: Single Phase AC Supply 220/230V
Optional: Steeliness Steel 304 grade Customer demand on request, thermostat in place of ER

Contact Engineering Lab Equipment for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best and renowned chemical engineering lab instruments supplier, chemical engineering lab equipment supplier, engineering lab instruments exporter, civil engineering lab equipment exporter, civil engineering lab instruments supplier, civil engineering lab equipments manufacturer in Ambala, India.
Last Updated: September 2026

Related Products: Hot Plate Circular, Hot Plate Rectangular, Heating Mantle, Magnetic Stirrer
