CNC Lathe Trainer
Product Code : EL-CACLE-10872

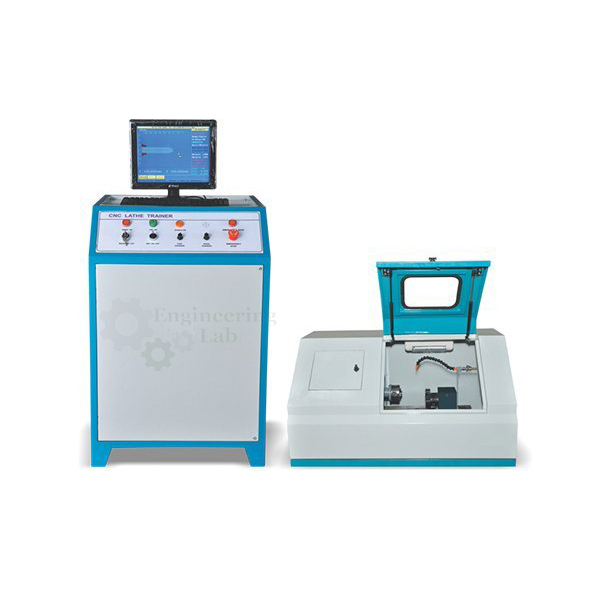

CNC Lathe Trainer (code EL-CACLE-10872) is a ground-bed CNC turning machine used to teach CNC lathe programming and operation, with MDI and offline programming, canned cycles, subprograms and inch or metric input. It has a 100 mm centre height, 150 mm between centres, a 30 mm maximum machining diameter and 200 mm longitudinal travel, stepper drives on both axes, and a 1 HP variable speed DC spindle motor running at 40 to 1500 RPM.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Features | |
| Bed | Ground bed |
| Axis drives | Stepper motors with stepper drive for both axes |
| Cutting speed | Constant surface cutting speed |
| Guard | Totally enclosed, high visibility |
| PC software | PC software with graphics |
| Ball screw | Imported ground ball screw |
| Spindle drive | Variable speed DC motor and drive |
| Programming facilities | Offline help and programming facility; MDI programming; inch and metric programming; subprogram with repeat facility |
| Display | Actual feed rate and spindle speed shown in execution and simulation mode |
| Canned cycles | Various canned cycles provided |
| Dwell | Programmable |
| Error detection | Automatically detects wrong step |
| Safety | Emergency stop and over travel limits |
| Diagnostics | Alarm and self diagnosis functions |
| Machine stop | Manual and programmable |
| Specification | |
| Centre height | 100 mm |
| Swing over cross slide | 50 mm |
| Distance between centres | 150 mm |
| Max. machining diameter | 30 mm |
| Max. longitudinal travel | 200 mm |
| Minimum increment | 0.005 mm |
| Minimum movement command | X (radial) 0.005 mm; Z 0.005 mm |
| Spindle inside taper | MT2 |
| Cross slide inclination | 0 degrees |
| Standard cutting tool size | 16 × 16 mm |
| Spindle motor | Variable speed DC motor, 1 HP |
| Spindle speed | 40 to 1500 RPM |
| Threading | Straight |
| Input system | Metric / inch |
| Axis control | Simultaneous |
| Interpolation | Linear, circular |
| Rapid feed rate | X 700 mm/min; Z 700 mm/min |
| Speed override | 20% to 160% |
| Feed override | 40% to 120% |
| Repeatability | ±0.020 mm |
| Dimensions and weight | |
| Machine dimensions | 1000 × 500 × 600 mm (L × W × H, approx.) |
| Machine weight | Approx. 200 kg |
| Supply | |
| Product code | EL-CACLE-10872 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the CNC Lathe Trainer Used For?
CNC turning shapes a rotating work-piece with a single-point tool whose movements along the radial X axis and the longitudinal Z axis are set by a program instead of by hand wheels. Students write part programs on the PC or at the machine through MDI, check them in simulation mode with the software's graphics, and then run them while the actual feed rate and spindle speed are shown on the display. Canned cycles, subprograms with repeat, programmable dwell and constant surface cutting speed introduce the main programming tools, while over travel limits, wrong-step detection, alarms and the emergency stop show how a CNC lathe guards against operator errors.
What to Specify When Ordering
- Quantity — the number of CNC lathe trainers required.
Frequently Asked Questions
What size of work can the CNC Lathe Trainer turn?
It has a 100 mm centre height, 150 mm distance between centres, a 30 mm maximum machining diameter, 50 mm swing over the cross slide and 200 mm maximum longitudinal travel.
What spindle motor and speeds does it use?
The spindle is driven by a 1 HP variable speed DC motor running from 40 to 1500 RPM, the spindle has an MT2 inside taper, and speed override is 20% to 160%.
Which programming methods are supported?
Programs can be entered by MDI or prepared offline, in inch or metric units, with canned cycles, subprograms with repeat facility and programmable dwell available.
What resolution and repeatability does it have?
The minimum increment and the minimum movement command on both the X (radial) and Z axes are 0.005 mm, and repeatability is ±0.020 mm.
What tool size does the lathe take?
The standard cutting tool size is 16 × 16 mm, the cross slide inclination is 0 degrees, and straight threading can be carried out.
What information helps with an export quotation for this lathe?
Include the number of machines, the destination country and port or city, the delivery terms required, for example FOB or CIF, any special packing requirements and the tender reference where there is one.
