Dial Type Micrometer
Product Code : EL-MAILE-10869

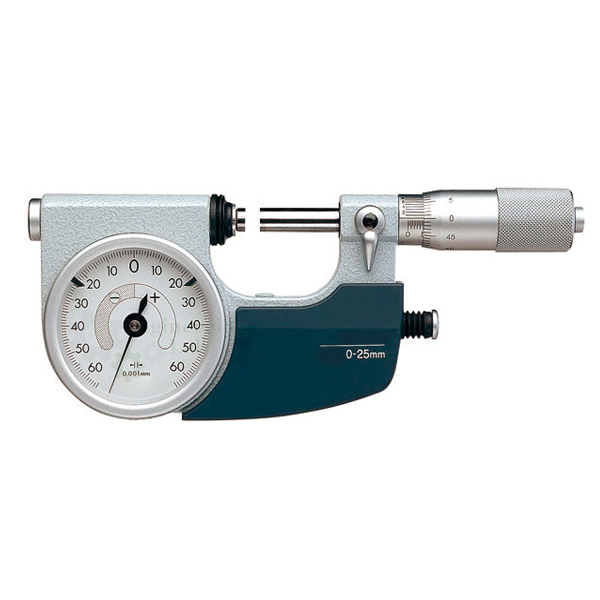

Dial Type Micrometer (code EL-MAILE-10869) is a dial indicating micrometer that uses a calibrated screw with a circular graduated dial and pointer to measure small distances. It has a 0-1 in measuring range, carbide-tipped measuring faces, IP54 level protection and a retractable anvil with indicator for three-wire measurement of the pitch diameter of precision screws and for parallelism checks, and it is supplied in a fitted plastic case.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Dial indicating micrometer; circular graduated dial with pointer |
| Measuring range | 0-1 in |
| Anvil | Retractable, with indicator |
| Applications | Three-wire measurement of pitch diameter of precision screws; parallelism measurement |
| Measuring faces | Carbide-tipped |
| Protection | IP54 level |
| Case | Fitted plastic case |
| Product code | EL-MAILE-10869 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Dial Type Micrometer Used For?
Micrometers measure small external sizes by the movement of a calibrated screw, and a dial type adds an indicator so that small differences from a set size can be seen directly. This model is used where comparative readings are needed, such as checking a batch of parts against a master, measuring the pitch diameter of screw threads over three wires, or checking the parallelism of faces. The retractable anvil is drawn back to insert each part and then released onto it, and the dial shows the reading, which suits repeated checks on production parts at the inspection bench.
What to Specify When Ordering
- Quantity — the number of dial micrometers required.
Frequently Asked Questions
What range does the Dial Type Micrometer cover?
This model has a measuring range of 0-1 in, with carbide-tipped measuring faces and IP54 level protection.
What is the retractable anvil used for?
The retractable anvil with indicator allows three-wire measurements of the pitch diameter of precision screws as well as parallelism measurements.
What is a three-wire measurement?
Three wires of known size are placed in the thread grooves and the micrometer measures over them; the reading is used to calculate the pitch diameter of the thread.
How is the instrument protected?
It carries IP54 level protection and is supplied in a fitted plastic case for storage between uses.
What types of micrometer are there?
Outside micrometers measure length, width or outside diameter, inside micrometers measure interior diameters such as holes, and depth micrometers measure the depth of steps, grooves and slots.
OEM Manufacturer
The Dial Type Micrometer is made by Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) at its works at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories for engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and can build equipment to an institution's own requirements. Tender and OEM enquiries are handled through the Tenders/OEM page.
