Go / No Go Gauges

Product Code : EL-MAILE-10840

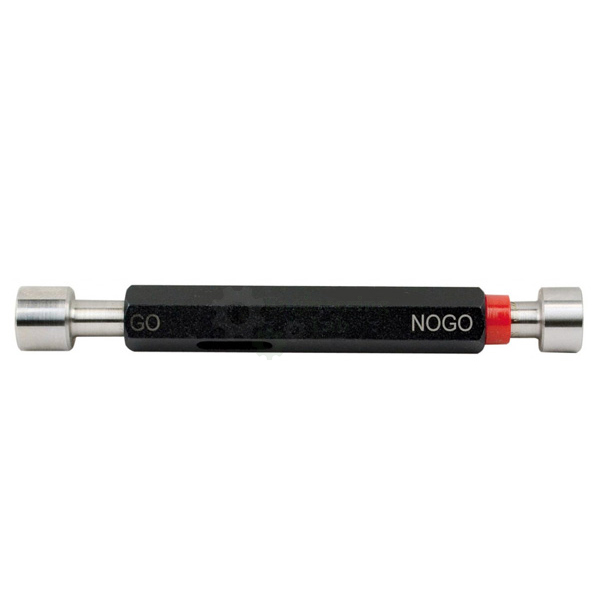

Go / No Go Gauges (code EL-MAILE-10840) are inspection gauges used to check a work piece against its allowed tolerance, the part having to pass the GO test and fail the NO GO test. This is a 7 piece H6 metric thread plug gauge set of double-end GO and NO GO gauges in taper lock design, covering M12 × 1.75, M10 × 1.5, M8 × 1.25, M6 × 1.0, M5 × 0.8, M4 × 0.7 and M3 × 0.5, supplied in a wooden case.

Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.

Specifications

What Are the Go / No Go Gauges Used For?

A go/no-go gauge does not give a size; it shows only whether a part is acceptable. With a thread plug gauge, the GO end should screw fully into a correctly made tapped hole, while the NO GO end should not run in beyond the first few turns; a hole that refuses the GO end or takes the NO GO end is outside tolerance. Inspectors and machinists use the set to sort tapped holes from M3 × 0.5 up to M12 × 1.75 quickly at the machine or the inspection bench, which helps keep parts interchangeable between processes and between different manufacturers.

What to Specify When Ordering

• Quantity — the number of gauge sets required.

Frequently Asked Questions

What does a go/no-go thread plug gauge check?
It checks a tapped hole against its allowed tolerance. The thread must accept the GO end and reject the NO GO end, so the gauge returns acceptable or unacceptable rather than a measured size.

Which thread sizes are in the set?
The 7 piece set covers the metric threads M12 × 1.75, M10 × 1.5, M8 × 1.25, M6 × 1.0, M5 × 0.8, M4 × 0.7 and M3 × 0.5.

Are the GO and NO GO ends on one gauge?
Yes. Each gauge is double-ended, with the GO member at one end and the NO GO member at the other, and both are held in a taper lock design.

What tolerance and class are given for the gauges?
The set is listed as H6 metric thread plug gauges in Class 2B, and the standard listed for them is ANSI Standard.

How is the set stored?
It comes in an included wooden case whose overall dimensions are 3-1/4 in long, 9 in wide and 1-1/8 in high, with a place for each of the 7 gauges.

Why are go/no-go gauges used in production?
They give a quick pass or fail decision without reading a scale, which helps ensure parts are interchangeable between processes and between different manufacturers as part of routine quality checks.
