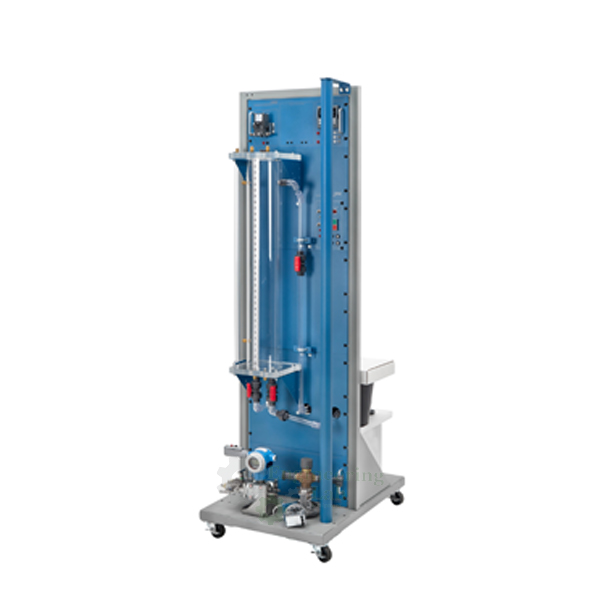

Level Measurement Trainer
Product Code : EL-MAILE-10807
Level Measurement Trainer (code EL-MAILE-10807) is a teaching set that shows how a load cell can be used to measure the level of water in a tank. A metallic tube hangs from a 1 kg beam-type load cell on the cover of a 10 litre acrylic tank fitted with a scale, and a digital indicator with a 3.5 digit LED display, calibrated in centimetres, reads levels over a 50 cm range.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Demonstrating the method and application of a load cell for measuring water level in a tank |
| Measuring tank | Acrylic, 10 litres capacity, 60 cm length, fitted with a scale |
| Sensor | Beam type load cell, 1 kg capacity, mounted on the acrylic cover on top of the tank |
| Sensing element | Metallic tube (rod) suspended from the load cell to the bottom of the tank |
| Measuring range | 50 cm |
| Indicator | Digital load indicator, calibrated to read level in centimetres |
| Display | 3.5 digit seven segment LED |
| Excitation | 10 V DC |
| Tare | Front panel zero adjustment by potentiometer |
| Calibration | Front panel cal adjustment by potentiometer |
| Drain | Drain valve releasing the water to the source tank |
| Source tank | Metallic, with EPI coating |
| Water pump | FHP vertical pump |
| Power supply | 230 V single phase, 50 Hz or 60 Hz |
| Dimensions | 500 × 500 × 600 mm (L × W × H) |
| Weight | Approx. 45 kg |
| Product code | EL-MAILE-10807 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Level Measurement Trainer Used For?
A body hanging in a liquid is pushed upwards by a force equal to the weight of liquid it displaces, so as the water rises around the suspended tube the pull on the load cell falls in step with the submerged depth. The indicator turns that change in force into a level reading in centimetres. Students fill the acrylic tank using the FHP vertical pump, compare the displayed level with the tank scale at several heights and zero or calibrate the indicator from the front panel, then run the water back to the source tank through the drain valve.
What to Specify When Ordering
- Quantity — the number of trainers required.
- Power supply — 230 V single phase, at 50 Hz or 60 Hz.
Frequently Asked Questions
How can a load cell measure water level?
The metallic tube hangs from the load cell into the water. As the level rises, buoyancy on the tube increases and the force on the load cell falls, and the indicator converts this into a level in centimetres.
What size is the measuring tank?
It is an acrylic tank of 10 litres capacity and 60 cm length, fitted with a scale for checking the level by eye, and the measuring range is 50 cm.
What load cell and indicator are used?
A beam type load cell of 1 kg capacity, excited at 10 V DC, is connected to a digital load indicator whose display is a 3.5 digit, seven segment LED type.
How is the reading zeroed and calibrated?
Both are set from the front panel: a zero potentiometer for tare, so the display can be brought to zero level, and a separate potentiometer for calibration.
Where does the water go after a test?
A drain valve on the measuring tank releases the water into the metallic, EPI-coated source tank, and an FHP vertical water pump is part of the set.
How big is the trainer?
The trainer measures 500 × 500 × 600 mm, weighs approx. 45 kg and works on a 230 V, 50 Hz or 60 Hz single-phase supply.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Level Measurement Trainer at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its measuring instruments and instrumentation trainers for engineering laboratories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
