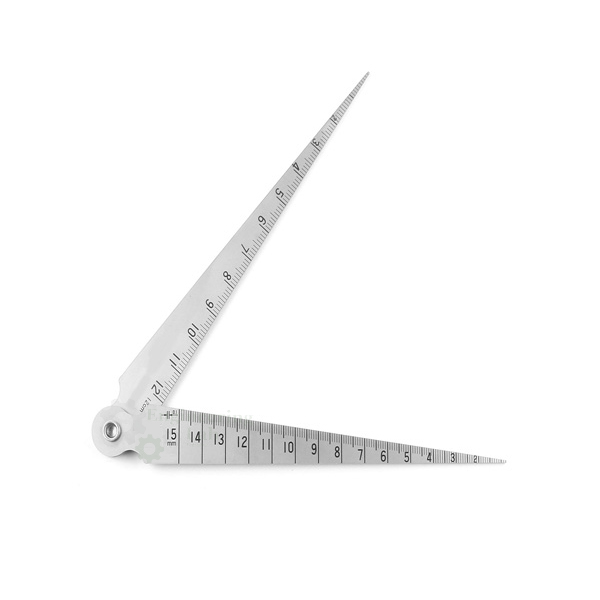

Taper Gauge
Product Code : EL-MAILE-10823
Taper Gauge (code EL-MAILE-10823) is a pocket-size internal gauge used to determine hole sizes in dies and other work and to measure internal tapers and cylindrical bores. It is made of stainless steel with laser-engraved figures and increments, has tempered steel leaves with a locking device for fixing any leaf in position, and reads in thousandths of an inch or 0.02 mm up to a maximum measurement of 0.500 inch.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Internal taper gauge |
| Use | Determining hole sizes in dies and all kinds of other work; measuring internal tapers and cylindrical bores |
| Applications | Design engineering, mechanical engineering and water flow engineering |
| Material | Stainless steel; polished, bright and clean without burr |
| Leaves | Tempered steel, with a locking device for fixing any leaf in position for use |
| Markings | Figures and increments etched into the surface; laser engraved lines that will not rub off |
| Size | Miniature, lightweight, pocket size |
| Reading | Thousandths of an inch or 0.02 mm |
| Maximum measurement | 0.500 inch |
| Measurement system | Inch |
| Product code | EL-MAILE-10823 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Taper Gauge Used For?
A taper gauge works by wedging: its tapered edge is slid into a hole or bore until it touches the walls, and the marking at the point of contact gives the size directly. Toolmakers and machinists use it for checking hole sizes in dies and other work, and for measuring cylindrical bores and internal tapers in design and mechanical engineering. Once the right leaf has been chosen, the locking device holds it in position while the reading is taken in thousandths of an inch.
What to Specify When Ordering
- Quantity — the number of taper gauges required.
Frequently Asked Questions
What is the Taper Gauge used for?
It is used to determine hole sizes in dies and many other kinds of work, and to measure cylindrical bores and internal tapers.
How fine are the readings?
The gauge reads in thousandths of an inch or 0.02 mm, on an inch measurement system, with a maximum measurement of 0.500 inch.
What is it made of?
The gauge is stainless steel, polished and free of burrs, and its leaves are tempered steel; a locking device holds any chosen leaf in position.
Will the markings wear off?
The figures and increments are etched into the surface and the lines are laser engraved, so they do not rub off with use.
How does a taper gauge measure a hole?
The tapered edge is pushed gently into the hole until it touches both sides, and the size is read from the graduation at the point where it meets the edge of the hole.
OEM Manufacturer
Buyers of the Taper Gauge deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
Related Measuring Instruments
- Go / No Go Gauges — 7 piece H6 metric thread plug gauge set, M3 to M12, double-end GO and NO GO, wooden case.
- Gauge Block — 81 piece Grade 0 set of inch slip gauges in high-carbon, high-chrome steel with laser-etched sizes.
- Angle Plate — 6 × 5 × 4-1/2 inch stress-relieved cast iron workholding plate with T bolt slots.
See the full Measurement and Instrumentation Lab Equipment range or all Mechanical Engineering Lab Equipment.
Request a Quote
For this and other measurement and instrumentation lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India. Quotations are given on request: send the number of taper gauges required and your delivery location through the contact page, or add the Taper Gauge to the enquiry cart from this page.
