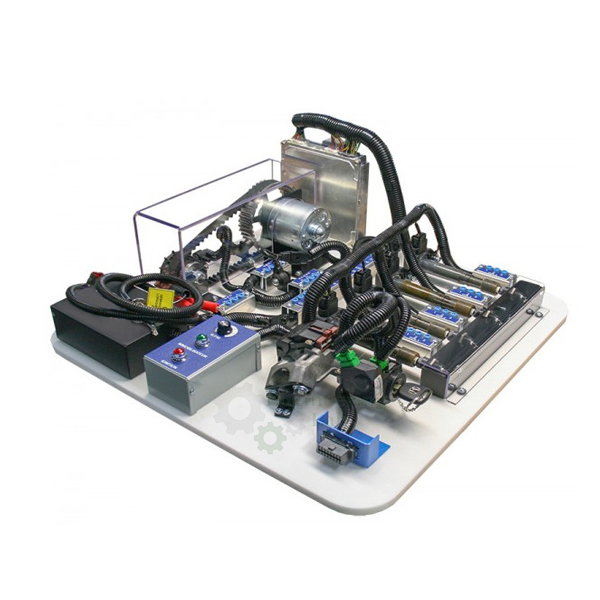

Coil on Plug Ignition System Trainer
Product Code : EL-TELE-10692
Quick Answer: The Coil on Plug Ignition System Trainer is a training unit used to show and test how a direct ignition system with coil-on-plug technology works, without a distributor. It includes an Engine Control Module (ECM), CKP and CMP sensors, ignition coils, spark plugs and a fault box with 4 faults, and measures 550 x 550 x 330 mm.
Students can watch the coil-on-plug system in operation and test and verify a basic ignition circuit that works without a distributor. The crankshaft and/or camshaft sprockets are driven by an electric motor, and four operational faults can be inserted through the fault box so that learners practise diagnostic troubleshooting at the test points. An OBDII data link connector is fitted, wiring schematics are included, and the unit weighs approx. 20 kg.
| FEATURES | |
|---|---|
| Ability to visualize the operation of a direct ignition system using coil-on-plug ignition technology | |
| Ability to test and verify a basic ignition circuit without distributor | |
| Four operational faults can be inserted to promote student diagnostic troubleshooting competencies | |
| Includes wiring schematics. | |
| SPECIFICATIONS | |
| Engine Control Module (ECM) | |
| Crankshaft position (CKP) sensor and camshaft position (CMP) sensor | |
| Ignition coils | |
| Spark plugs | |
| Fault box with 4 faults | |
| Electric motor driven crankshaft and/or camshaft sprockets | |
| OBDII data link connector | |
| Test points for diagnosis | |
| DIMENSIONS AND WEIGHT | |
| L x W x H | 550x 550x 330 mm |
| Weight (approx.) | 20kg |
For this and other thermal engineering lab equipment, schools and colleges can contact Engineering Lab Equipment, a manufacturer, supplier and exporter based in Ambala, India.
