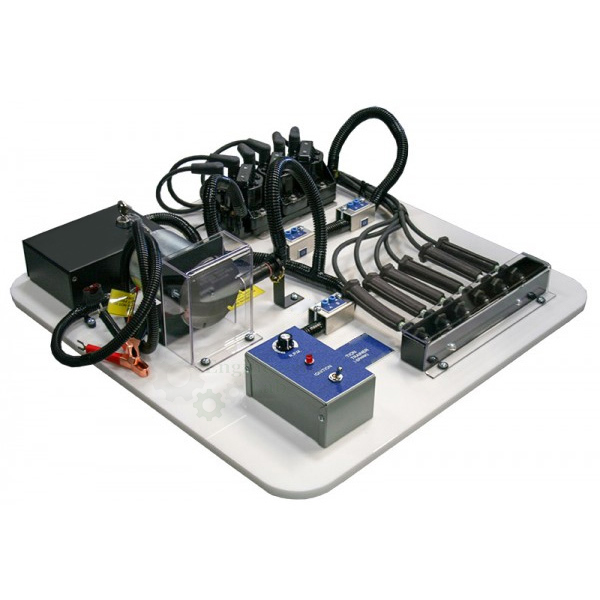

Spark Ignition System
Product Code : EL-TELE-10705
Quick Answer: The Spark Ignition System trainer is a training board, built with OEM components in a distributor-less waste-spark configuration, used to teach the waste-spark electronic ignition system found on some four-stroke cycle internal combustion engines. It demonstrates the working of a spark-ignition (SI) engine, where the air-fuel mixture is ignited by a spark from a spark plug, in contrast to compression-ignition (typically diesel) engines that rely on heat from compression and fuel injection instead of an external spark, and it requires a 12V DC power supply to operate.
This training board is used to teach the waste-spark electronic ignition system that is usually installed on some four-stroke cycle internal combustion engines, with the distributor-less trainer mounted with OEM components. A spark-ignition engine (SI engine) is an internal combustion engine, generally a petrol engine, where the combustion process of the air-fuel mixture is ignited by a spark from a spark plug; this is in contrast to compression-ignition engines, typically diesel engines, where the heat generated from compression together with the injection of fuel is enough to initiate the combustion process, without needing any external spark. The trainer requires a 12V DC power supply to operate.
FEATURES:
Ability to visualize the operation of a direct ignition system using coil-on-plug ignition technology.
Ability to test and verify a basic ignition circuit without distributor.
Actively troubleshoot faults that have been intentionally introduced in the connections.
Four operational faults can be inserted to promote student diagnostic troubleshooting competencies.
Includes wiring schematics.
Easily describe all of the components of the system that have been mounted together on a board.
Educate about the whole wiring system by disassembling and assembling the various parts.
Effortlessly use and display this model because of its compact and inclusive design.
SPECIFICATION:
Crankshaft position (CKP) sensor with gap adjustment
Ignition control module
Spark plugs and plug wires
Fault box with 4 faults
Electric motor driven crankshaft sprocket
Motor speed controller
Test points for diagnosis
Requires a 12V DC power supply to operate
DIMENSIONS AND WEIGHT:
L x W x H: 550x 550x 330 mm
Weight (approx.): 20kg
