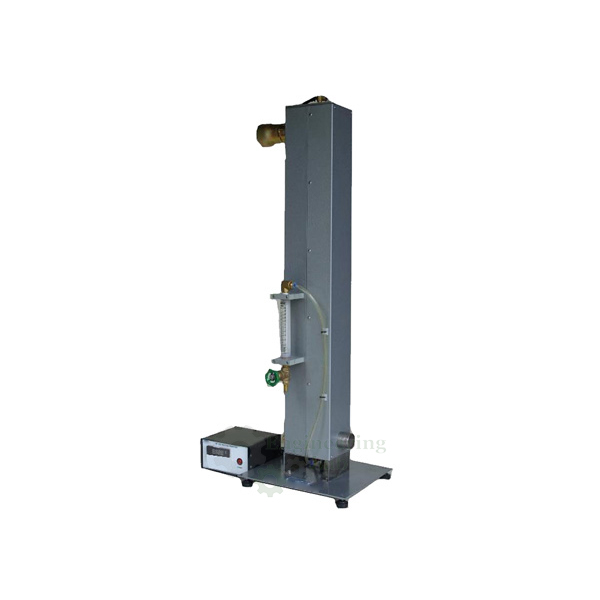

Exhaust Gas Calorimeter
Product Code : EL-TELE-10695
Quick Answer: The Exhaust Gas Calorimeter is a water-cooled heat exchanger used with a multi-cylinder engine to determine the thermal losses carried away in the exhaust gas, an essential step in calculating an engine's energy balance. Exhaust gas flows around small vertical finned tubes inside an insulated, disassemblable stainless steel chamber while cooling water flows through the tubes, and instrumentation displays the water flow rate together with the exhaust and water temperatures needed for the calorimetric calculation.
The Exhaust Gas Calorimeter is a water heat exchanger designed for use with a multi-cylinder engine, built around small vertical finned tubes enclosed in an insulated stainless steel chamber. Determining the thermal exhaust gas losses is essential when calculating an energy balance for internal combustion engines, and calorimetric measurement is an established method of doing this; it involves a largely complete, loss-free heat exchange between the exhaust gas and a cooling medium. Exhaust gas from the engine is connected to the calorimeter and flows around the finned tubes while cooling water flows inside the tubes, and the chamber can be disassembled for cleaning the finned tubes. Instrumentation is provided to display the water flow rate and the temperatures of the exhaust gas and water, and the unit requires a water supply to operate.
FEATURES:
Counter flow heat exchanger for calorimetric analysis of exhaust gases from internal combustion engines
Determination of the amount of heat contained in the exhaust gas from test engines
Calorimeter consisting of finned pipe heat exchanger and insulated tank
Instrumentation: 4 temperature sensors, flow meter
Measuring amplifier with digital displays
Connection between engine and calorimeter using exhaust gas hose
Cold water connection and drain required.
SPECIFICATION:
Calorimeter
Insulated, stainless steel
Finned pipe heat exchanger
Heat exchange area on exhaust gas side: 0,944m2
Heat exchange area on water side: 0,141m2
Measuring ranges
Temperature:
2x 0…600°C (exhaust gas)
2x 0…200°C (cooling water)
Flow rate: 0…160L/h
230V, 50Hz, 1 phase
DIMENSIONS AND WEIGHT:
L x W x H: 600x 600x 1300mm
Weight (approx.): 103kg
