Depth Gauge Dial Type
Product Code : EL-MAILE-10825

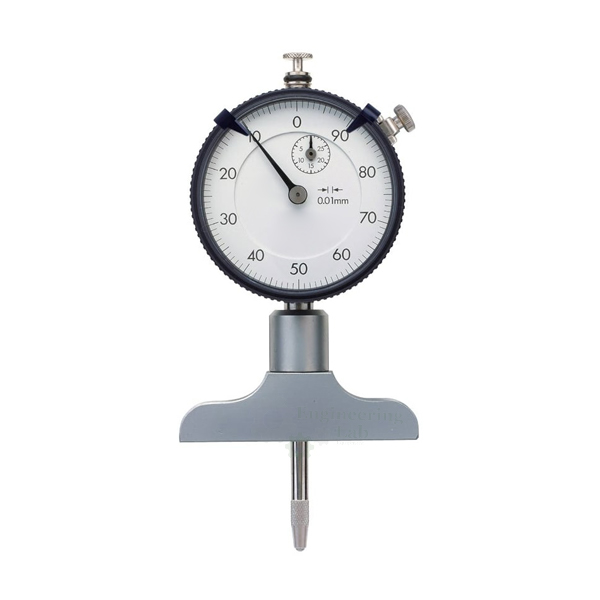

Depth Gauge Dial Type (code EL-MAILE-10825) is a caliper type depth gauge with a dial reading and fine adjustment, used for measuring the depth of holes, slots and steps. It is made of hardened stainless steel with hardened and lapped base and measuring faces, and covers 0–8 inch with a graduation of 0.001 inch and an accuracy of ±0.001 inch; a wider extension base is available as an option.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Type | Caliper type dial depth gauge with fine adjustment |
| Range | 0–8 in (measurement range for the series) |
| Graduation | 0.001 in |
| Resolution | 0.001 in |
| Accuracy | ±0.001 in |
| Material | Hardened stainless steel |
| Base and measuring faces | Hardened and lapped |
| Fine adjustment | Fine adjustment screw for fine setting during measurement |
| Readout | Dial gauge, reading in fine units |
| Optional accessory | Wider extension base, sold separately |
| Product code | EL-MAILE-10825 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Depth Gauge Dial Type Used For?
Dial depth gauges are used in machine shops and inspection rooms to measure the depth of holes, slots, recesses and shoulders, where the reading must be taken from a flat reference surface. The operator places the lapped base across the opening, runs the measuring end down until it meets the bottom, sets it gently with the fine adjustment screw and reads the depth on the dial in thousandths of an inch. The optional wider extension base, sold separately, spans wider openings and gives a steadier seat on the work.
What to Specify When Ordering
- Quantity — the number of depth gauges required.
- Extension base — whether the optional wider extension base is to be supplied.
Frequently Asked Questions
What range does the dial depth gauge cover?
The range is 0 to 8 inch, read on a dial gauge with a graduation of 0.001 inch and an accuracy of ±0.001 inch.
What is the gauge made of?
It is made of hardened stainless steel, and the base and measuring faces are hardened and lapped as well.
What is the fine adjustment screw for?
The fine adjustment screw allows fine setting during measurement, so the measuring face can be brought gently onto the bottom of the feature without forcing the gauge.
Is a wider base available?
Yes, as an option: a wider extension base can be bought separately to go with the dial type depth gauge.
How can this depth gauge be ordered?
Use the Add To Cart enquiry on this page, or write through the contact page with the quantity and the delivery location.
OEM Manufacturer
Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd) builds the Depth Gauge Dial Type at its works in Saha, District Ambala, Haryana (Plot No. 43, Industrial Park, Sector 2, Growth Center). Its measuring instruments and instrumentation trainers for engineering laboratories go to engineering colleges, polytechnics, technical training institutes and research laboratories in India and abroad, and equipment can be made to an institution's own requirements. For tenders and OEM supply, see the Tenders/OEM page.
