Vibration Measurement Trainer
Product Code : EL-MAILE-10814

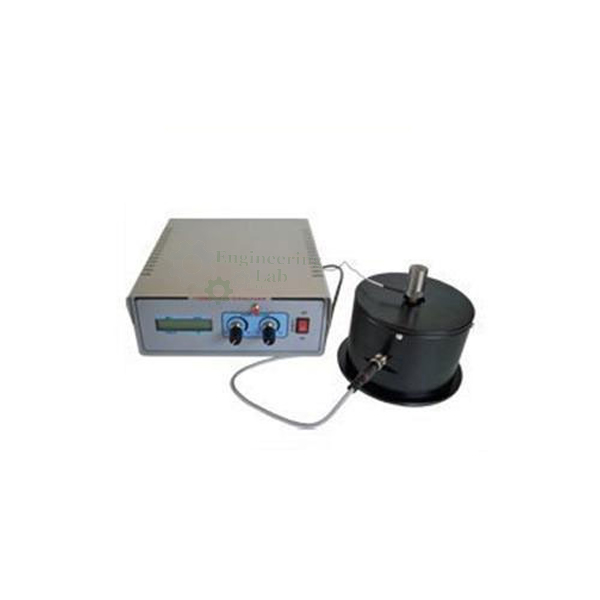

Vibration Measurement Trainer (code EL-MAILE-10814) is a trainer for generating controlled vibration and measuring it with a piezoelectric accelerometer, with acceleration, velocity, displacement and frequency shown on a digital display. A 5 N vibration generator with exciter is driven by a power amplifier variable from 0 to 10 V peak to peak at 50 to 1000 Hz, and the readings appear on a 4½ digit, 16 × 2 line LCD.
Get a quote: use the Add To Cart enquiry button below, or send your quantity and delivery location through the contact page.
Specifications
| Parameter | Detail |
|---|---|
| Use | Generating vibration and measuring it with an accelerometer |
| Vibration source | Vibration generator with vibration exciter, capacity 5 N |
| Power amplifier | 0 to 10 V peak to peak, variable by potentiometer |
| Frequency | 50 to 1000 Hz, variable by potentiometer |
| Vibration sensor | Accelerometer, piezoelectric crystal |
| Indicator | 4½ digit, 16 × 2 line LCD |
| Parameters displayed | Acceleration, velocity, displacement and frequency |
| Enclosure | Tapered fibreglass box with all necessary test points brought out on schematic circuitry |
| Scope of supply | Self-contained system, all accessories included |
| Power supply | 230 V, 50 Hz or 60 Hz, single phase |
| Dimensions | 400 × 300 × 300 mm (L × W × H) |
| Weight | Approx. 25 kg |
| Product code | EL-MAILE-10814 |
| Manufacturer | Engineering Lab Equipment, Ambala, Haryana, India |
What Is the Vibration Measurement Trainer Used For?
Vibration is described by its frequency and by the size of the motion, given as displacement, velocity or acceleration; for a steady sinusoidal vibration the three are linked through the frequency, so one measured quantity lets the others be calculated. A piezoelectric accelerometer gives a charge proportional to the acceleration it feels. Students set the exciter's amplitude and frequency with the two potentiometers, let the accelerometer sense the vibration and read all four parameters on the LCD, then repeat at other frequencies to see how the three motion quantities relate to one another.
What to Specify When Ordering
- Quantity — the number of trainers required.
- Power supply — single phase 230 V, 50 Hz or 60 Hz.
Frequently Asked Questions
What produces the vibration?
A vibration generator of 5 N capacity with a vibration exciter, driven by a power amplifier that is adjusted from 0 to 10 V peak to peak by a potentiometer.
What frequency range can be set?
The frequency is variable from 50 to 1000 Hz by a potentiometer, so readings can be compared at several frequencies within that band.
Which quantities does the display show?
The 4½ digit, 16 × 2 line LCD shows acceleration, velocity, displacement and frequency of the vibration sensed by the accelerometer.
What type of sensor is used?
The sensor is an accelerometer with a piezoelectric crystal, which produces an electrical charge proportional to the acceleration it experiences.
What is the enclosure like?
The instrument is housed in a tapered fibreglass box, with every necessary test point brought out on the schematic circuitry, so students can follow its working.
How is this trainer ordered?
Click Add To Cart on this page to send an enquiry, or write through the contact page giving the quantity needed and where it is to be delivered.
OEM Manufacturer
Buyers of the Vibration Measurement Trainer deal directly with its maker, Engineering Lab Equipment (Engineering Labs Equipment Pvt Ltd), whose works are at Plot No. 43, Industrial Park, Sector 2, Growth Center, Saha, District Ambala, Haryana, India. The company designs, makes and tests measuring instruments and instrumentation trainers for engineering laboratories, supplies engineering colleges, polytechnics, technical training institutes and research laboratories in India and overseas, and builds to institution-specific requirements on request. Tender details are on the Tenders/OEM page.
